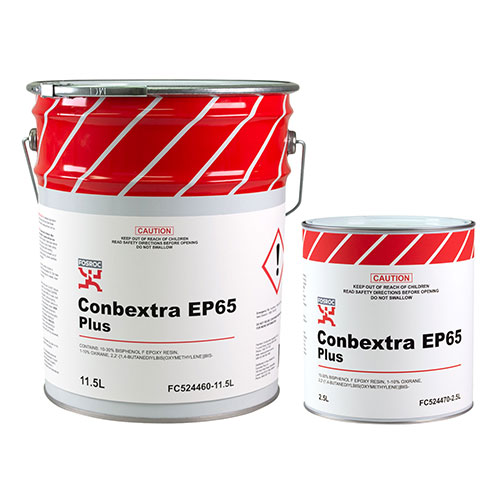

Conbextra EP65 Plus

Conbextra EP65 Plus is an ultra high strength (125MPa) 2 component epoxy grout. It is designed for use as a precision, heavy duty grouting for gaps between 10mm and 100mm.

Typical Applications

  • Grouting under baseplates
  • Crane rails turbines where heavy dynamic loads are encountered
  • Areas where chemical spillage may occur

Advantages

  • Very high compressive, tensile and flexural strengths
  • Resistant to repetitive dynamic loads
  • Fast, convenient installation with high early strength gain
  • Withstands a wide range of chemicals
  • Low creep characteristics under sustained loading
  • 28 day strength @ 20°C dependent on consistency (cube samples) : 125 MPa
  • Application method : Pump or pour
  • Chemical resistance : Resistant to oil, grease, fats, most chemicals, mild acids and alkalis, fresh water and sea water
  • Flexural Strength (modulus of rupture) @ 28 days : 29MPa (7 days)
  • Gap size : 10mm to 100mm
  • Indirect tensile strength @ 28 days : 15 Mpa 7 days
  • Pot life @ 20°C : 30 mins
  • Service temperature : 10°C to 55°C
  • Tack free time : 950-2500

Overview

Typical Applications

  • Grouting under baseplates
  • Crane rails turbines where heavy dynamic loads are encountered
  • Areas where chemical spillage may occur

Advantages

  • Very high compressive, tensile and flexural strengths
  • Resistant to repetitive dynamic loads
  • Fast, convenient installation with high early strength gain
  • Withstands a wide range of chemicals
  • Low creep characteristics under sustained loading

Key Properties

  • 28 day strength @ 20°C dependent on consistency (cube samples) : 125 MPa
  • Application method : Pump or pour
  • Chemical resistance : Resistant to oil, grease, fats, most chemicals, mild acids and alkalis, fresh water and sea water
  • Flexural Strength (modulus of rupture) @ 28 days : 29MPa (7 days)
  • Gap size : 10mm to 100mm
  • Indirect tensile strength @ 28 days : 15 Mpa 7 days
  • Pot life @ 20°C : 30 mins
  • Service temperature : 10°C to 55°C
  • Tack free time : 950-2500
