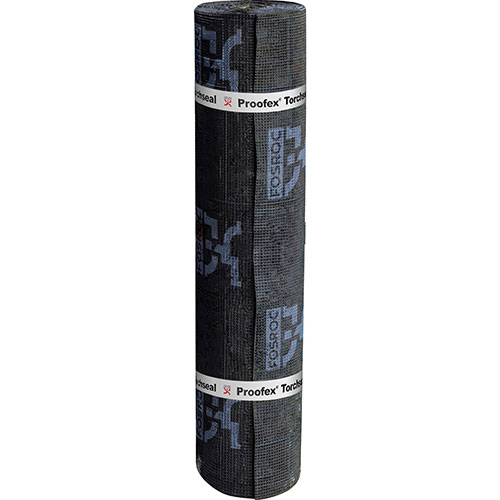

Proofex Torchseal A600

Torch applied 3mm thick, reinforced polymer - bitumen waterproofing membrane. Used as a continuous waterproofing membrane for foundations, basements and tunnels, particularly as the base layer of multi-layer systems.

Typical Applications

  • Waterproofing membrane for foundations, basements and tunnels, particularly as the base layer of multi-layer systems

Advantages

  • APP polymer modified -specifically selected for Australian conditions
  • Handles ponding and permanently wet conditions
  • No curing times. Instantly waterproof
  • Uniform thickness eliminating likelihood of uneven application possible with liquid applied membranes
  • Excellent stability at both high and low temperatures
  • Excellent durability and flexibility
  • Flexibility at low temperature (EN1109) : -10°C
  • Impermeability to water (EN1928 B method) : ≥ 60 kPa
  • Longitudinal Tensile elongation (EN12311 1) : 40%
  • Longitudinal Tensile strength (EN12311 1) : 700 N/50mm
  • Thickness /Mass : 3mm
  • Transverse Tensile elongation (EN12311 1) : 45%
  • Transverse Tensile strength (EN12311 1) : 450 N/50mm

Overview

Typical Applications

  • Waterproofing membrane for foundations, basements and tunnels, particularly as the base layer of multi-layer systems

Advantages

  • APP polymer modified -specifically selected for Australian conditions
  • Handles ponding and permanently wet conditions
  • No curing times. Instantly waterproof
  • Uniform thickness eliminating likelihood of uneven application possible with liquid applied membranes
  • Excellent stability at both high and low temperatures
  • Excellent durability and flexibility

Key Properties

  • Flexibility at low temperature (EN1109) : -10°C
  • Impermeability to water (EN1928 B method) : ≥ 60 kPa
  • Longitudinal Tensile elongation (EN12311 1) : 40%
  • Longitudinal Tensile strength (EN12311 1) : 700 N/50mm
  • Thickness /Mass : 3mm
  • Transverse Tensile elongation (EN12311 1) : 45%
  • Transverse Tensile strength (EN12311 1) : 450 N/50mm
